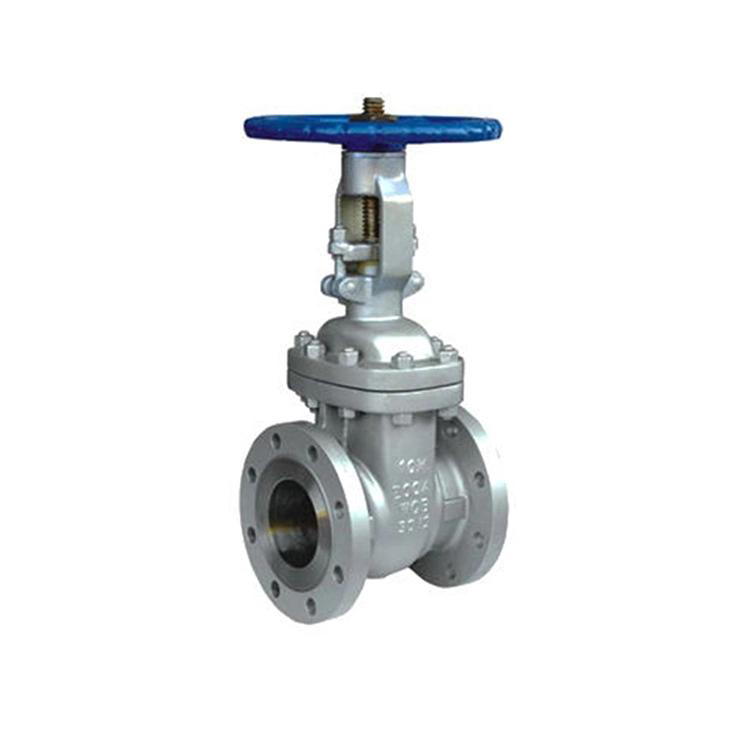

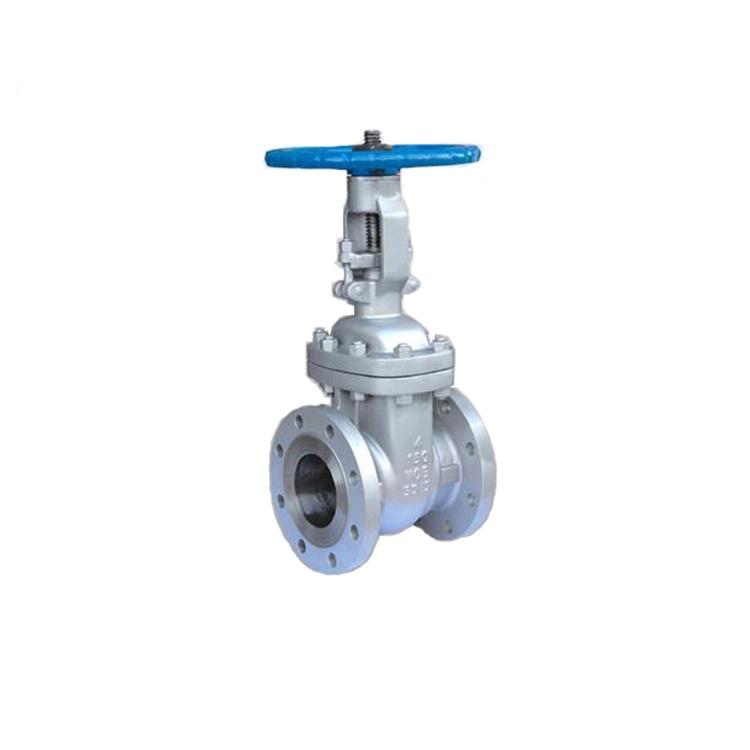

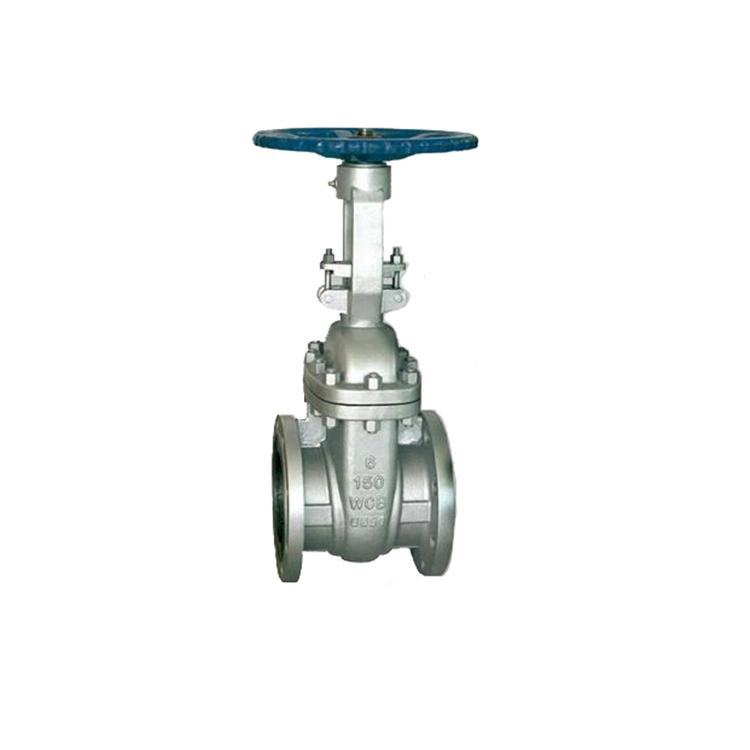

Cast steel Gate Valve
SGON Cast steel Gate Valves are primarily used for stop valves fully opened or fully closed .They are not normally considered for throttling purposes,but more for slurries,viscous fluids,etc. Gate valves are characterized by a traveling wedge ,which is moved with the operation of the stem nut. Gate valves usually have a minimum pressure drop when fully open,provide tight shut-off when fully closed,and remain relatively free of contamination buildup.
Technical Specification
Normal Size Range: 2"-24"
Normal Pressure Rating: PN10~PN420, CLASS150~2500
Material: WCB,LCB,WC6,CF8,CF8M,CF3,CF3M
Temperature Range: -29°C~425°C
Standards compliance
Design and Manufacture: ANSI B16.34, API600, API6D, API603, BS1414
Face to face(end to end): ANSI B16.10, API6D
Flanged connection: 2"~24" to ANSI B16.5, 22",26"~36" to MSS-SP-44 or to API605 on Request
Test and inspection: API598, API6D
Butt welded end: ANSI B16.5
A. Anti-friction ball thrust bearing:Reduces friction between mating parts to ensure smooth operation
B. Grub screw:Secures yoke nut in the bonnet
C. Grease nipple:Supplies lubricant to the mating parts
