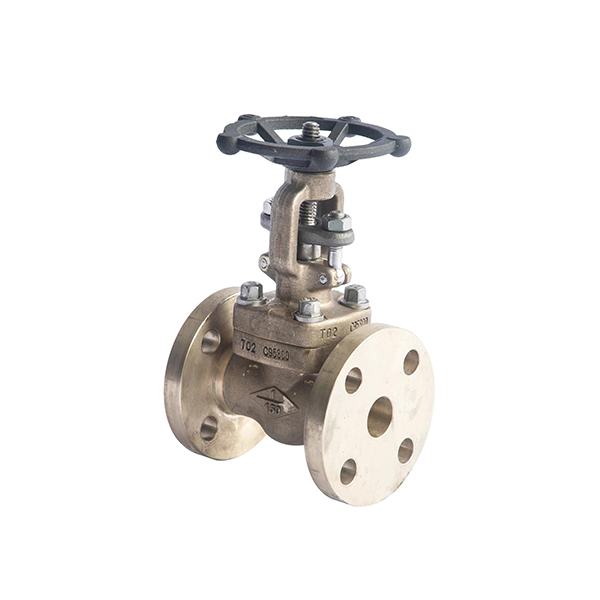

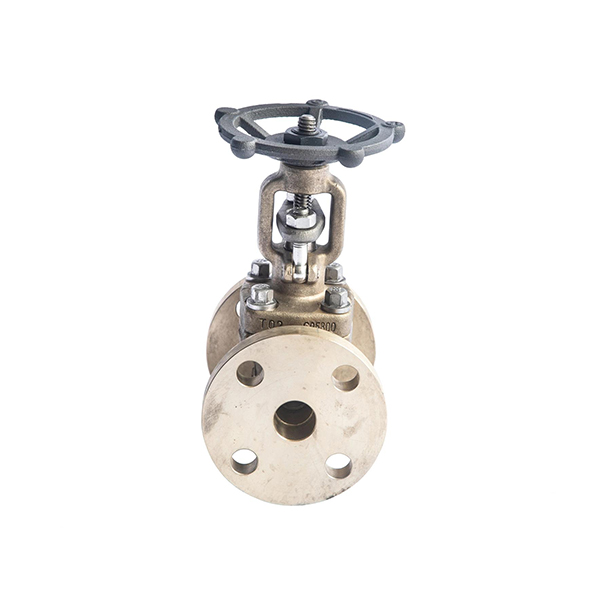

Forged Bronze Gate Valve
SGON VALVE is specialized in manufacturing Socket Welding Forged Gate Valve with following good characteristics: good sealing performance, reliable safety guarantee, long life span and etc. Socket Welding Forged Gate Valve is usually used for DN40 for its economic features, and butt welding ends is for DN40. Socket welding is widely used for small size pipe because they would always have a thin wall thickness which may have problems for butt welding. Moreover, the birdsmouth part of socket welding has the function of reinforcement so that it is also welcomed under high pressure.
Technical Specification
Normal Size Range: 1/2"- 4"
Normal Pressure Rating: PN10~PN150, CLASS150~900
Material: B62, C95800
Temperature Range: -29~425Degree C
Standards compliance
Design and Manufacture: API602
Face to face(end to end): ASME B16.10
Flanged connection: ASME B16.5
Butt welded end: ASME B16.25
Socket-Welding Ends: ASME B16.11
Screwed Ends: ASME B1.20.1
Test and inspection: API598
