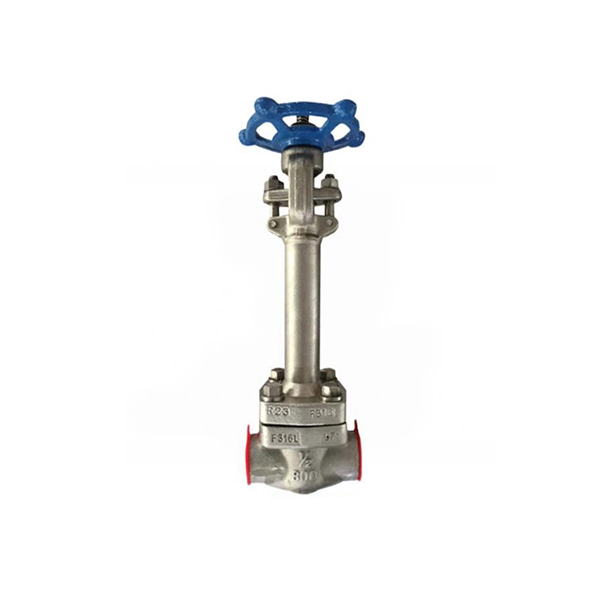

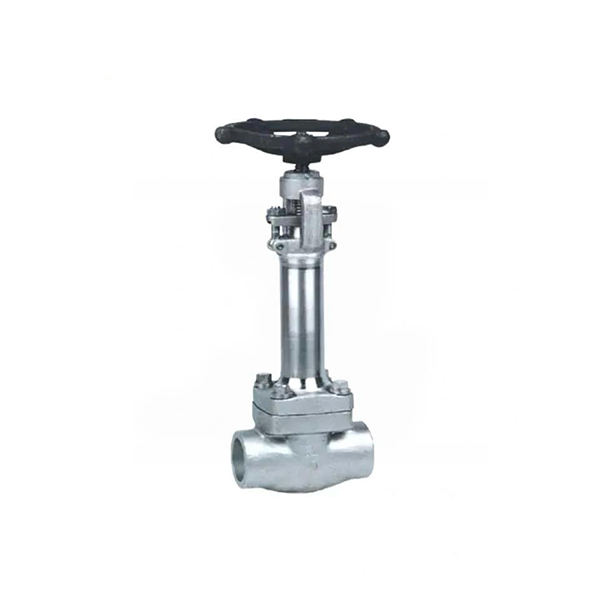

Forged Cryogenic Gate Valve
SGON Forged steel cryogenic valves are mainly applicable to various piping systems of thermal power plants, cutting off or connecting piping medium. Applicable medium: water, steam and other non corrosive media. Compared with other valve products, forged steel valves are characterized by high temperature, high pressure and unique self sealing design. The higher the pressure, the more reliable the sealing is. Because of the special technical characteristics and special working conditions, the products also have the characteristics that other products can not replace.
Technical Specification
Normal Size Range: 1/2"- 4"
Normal Pressure Rating: PN10~PN420, CLASS150~2500
Material: A105,LF2,F11,F22,F304,F304L,F316,F316L
Temperature Range: -29~425Degree C
Standards compliance
Design and Manufacture: API602
Face to face(end to end): ASME B16.10
Flanged connection: ASME B16.5
Butt welded end: ASME B16.25
Socket-Welding Ends: ASME B16.11
Screwed Ends: ASME B1.20.1
Test and inspection: API598
