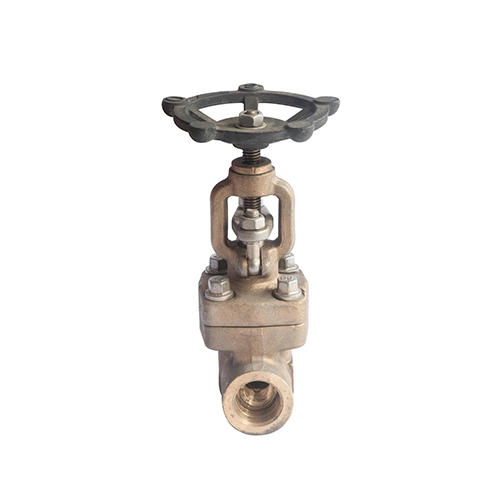

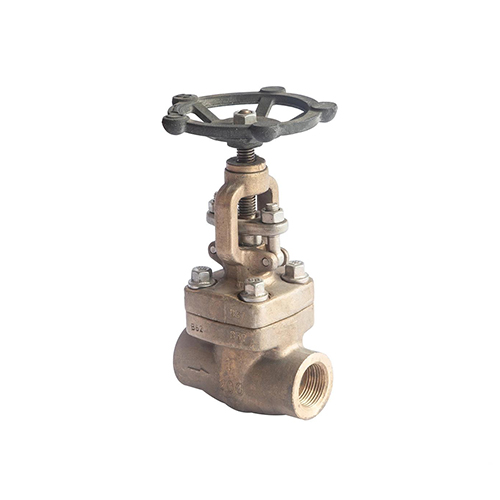

Forged Bronze Globe Valve
Once the globe valve is open, there is no contact between the seat and the disc sealing surface, so the sealing surface is less mechanically worn. Since most of the seats and discs of the globe valve are easier to repair or replace, the valve does not need to be removed from the pipeline, which is welded to the valve and pipeline. An integral occasion is applicable. The flow direction of the medium changes as it passes through such valves, so the flow resistance of the globe valve is higher than that of other valves.
Technical Specification
Size ranges: 1/2” through 2”
Pressure ratings: ANSI 150LB ~ 800LB
Standards compliance: API 602, ASME B16.34 or equivalents
Materials: B61, B62 and etc
Ends connections: Flanged(FF, RF), Screwed, Welded Ends to international standards
OS&Y, Outside Stem and Yoke
Metal-sealed-Bronze
Optional Locking Device or Stem Extension
Optional Direct Mounting to ISO 5211
Reduce Port
