Other Check Valve

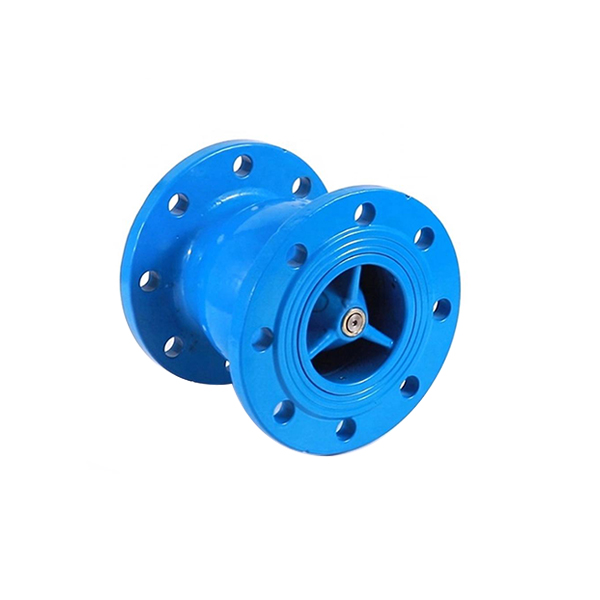

The SGON Axial flow Check Valve is composed of valve body, valve seat, guide body, disc, bearing and spring. The internal flow path is streamlined design, the pressure loss is small, the valve opening and closing stroke is very short, the pump can be closed quickly when the pump is stopped, so as to prevent the sound of the huge water hammer and form the silent effect. The valve is mainly used in water supply, drainage, fire fighting, HVAC, petrochemical, electric and other industrial projects. It can be installed at the outlet of the pump to prevent the reverse flow of medium and the damage to the equipment by water hammer.

The SGON Non-slam nozzle check valves is a streamlined venture port design so as to reduce pressure loss. This series valve disc is the only moving part to minimize internal wear and compressed disc spring initiates valve closure as flow slows down and provides quick reaction on flow velocity change. It can be used in a wide range of critical and demanding services applications such as fast reversing reciprocating compressor system or installations where the check valve must be placed in close proximity to the pump inlet or outlet.

The product is composed of valve body, guide body, axial movement valve disc and spring component. The product can effectively prevent the reflux of the medium. Ensure the safety of the pipeline. The valve body, disc and tail are designed as streamlined passageways with good fluid performance, minimizing flow resistance and pressure. Using high performance spring material HT/INCONELX-750, it has excellent corrosion resistance, antioxidant and excellent mechanical properties, and ensures the running state of the spring under the long working condition. Mute operation eliminates noise and water hammer in valve piping to ensure safety of equipment and piping. The opening and closing reaction is fast, and the high reliable preload spring enables the disc to respond quickly to the change of fluid pressure. Compact structure, convenient installation, vertical and horizontal installation. The valve is made of alloy steel overlaying welding cover, wear-resistant, corrosion resistant and long life.

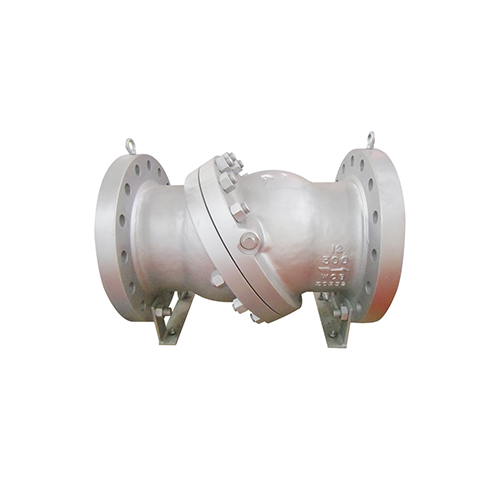

The Pressure Seal Tilting Disc Check Valve is a non impact check valve with flange size of ASME B16.5. Its main advantage is to overcome the impact and water hammer phenomenon of swing check valve and lift upper check valve under working conditions, and realize non impact operation.

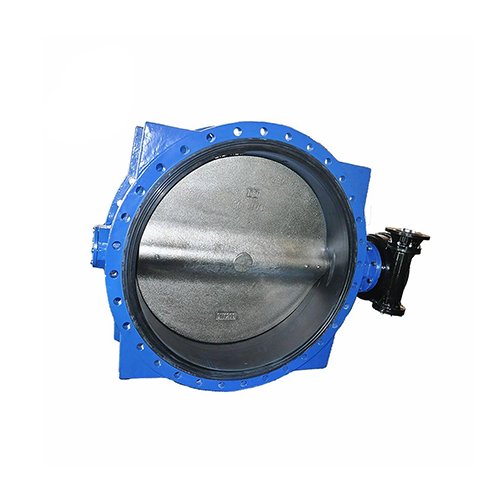

SGON Butterfly Type Check Valves is a double offset , triple offset butterfly type check valve. It is equipped with a buffer to slow down the closing speed to make partial medium enter the system in order to greatly eliminate the backflow slamming and the destructive pressure surge when pump stops working. It is mainly mounted at outlet side of the pump station in industrial water recycling supply system, urban water supply system, high-rise buildings and modern hotels. The model is designed to have non-vibration non-slam performance in consideration of special application environment. It has good sealing, smooth operation, long service life, energy saving advantage to make the living environment quiet and comfortable.

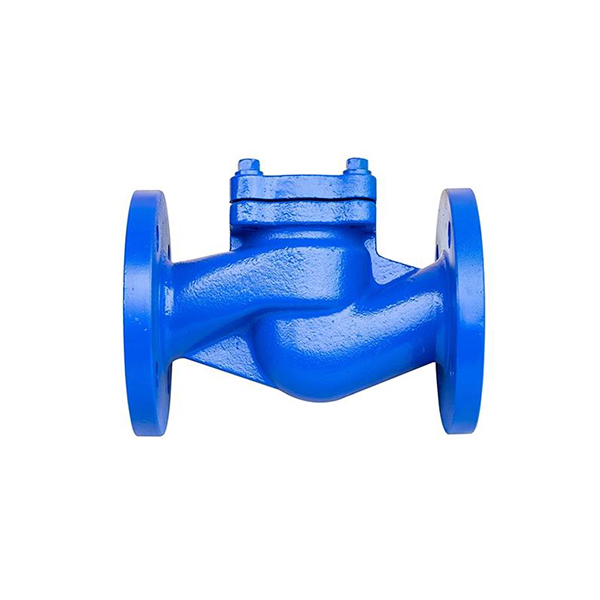

SGON DIN Lift Check Valves is used to prevent back flow in the line .Flow is in a straight line through the valve resulting in minimal pressure drop . The disc swings into the open position as the media flows through the line .Back pressure in the line holds the disc in the closed position . KOSEN DIN Lift Check Valves may be installed in horizontal or vertical lines ,but must be installed in proper relation to the media flow as indicated by the flow direction arrow marked on the body.

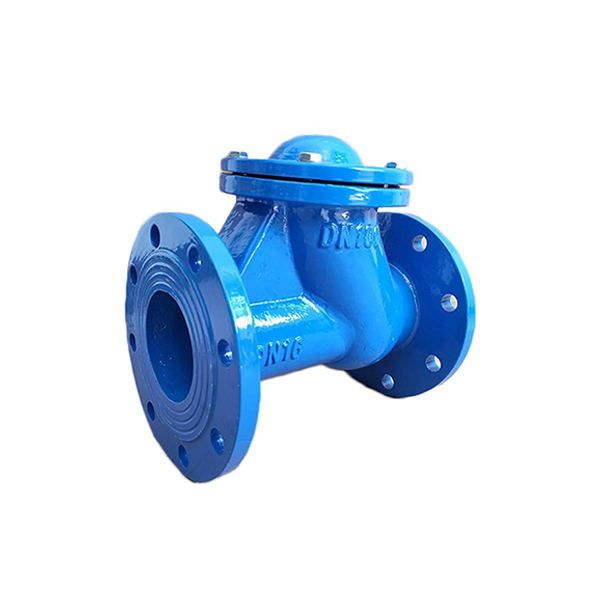

The SGON Ball Type Check Valves is composed of valve body, valve plate and spring. It is suitable for the supply and drainage pipes. The valve is guided by the central axis of both ends of the import and export. The valve is flexible and can be installed horizontally or vertically. The valve disc is loaded by spring, and its quick closing can effectively reduce the water hammer pressure, seal performance is good, shut off without noise. It has the advantages of small volume, light weight, small fluid resistance, fatigue resistance and long life.

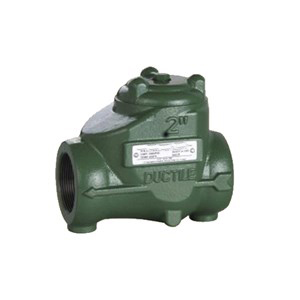

The SGON Oid Field Check Valve is an ideal choice for oil & gas production lines where back flow is a concern. The swing check offers simplicity and is easily repairable with top entry to the valve internals.
