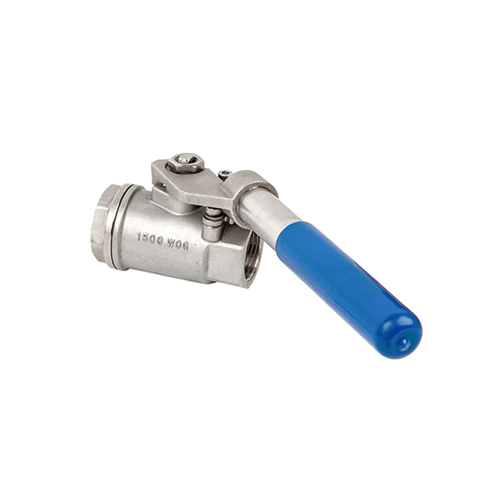

Spring Return Ball Valve

Spring Return Ball Valve

Female threaded ball valves are suitable for using on pipelines of medium or low pressure to turn off or swith on pipeline medium. Operation manners are in general of manual, and pneumatic or electric actuators are available.Based on design structures, the valves get divided into three pieces, two pieces, and one piece types. Female Threaded ball valve & butt welded ball valve could be divided into one piece, two piece and three piece body. Advanced casting technology is used for body with reasonable structure and beautiful appearance. Elastic seat material is adopted to ensure reliable sealing together with easy operation.

Spring Return Ball Valve
Spring Return Ball Valve Spring Return Ball Valve

Technical Specification

Product name: Stainless Steel Floating Ball Valve

Size: 1/2" -2" (DN15-DN50)

Material: SS201, SS304, SS316(CF8, CF8M)

Pressure: 1000psi, PN16

Suitable medium: water, oil, air and some corrosive liquid etc(WOG)

Temperature Range: -20-250 degree C

Connection: F/F threaded

Type of thread: NPT, BSPT, BSP, PT, DIN2999 ETC

Sealing: PTFE, RPTFE, PPL ETC

Certification: CE, ISO

Gurantee Period: 12 monthes

Type of Port: full  port

Casting: Investment

Capacity to produce: 100, 000.00 PCS/week

Terms of payment: 30% TT deposit, the balance is paid before shipping the goods

Delivery time: 30-45 days after received the deposit

Package detail: inner CTN, ourside ply-wooden case

Locking: With or without

Brand: Our brand is SGON, we also can print your logo if you can give us the authorization
