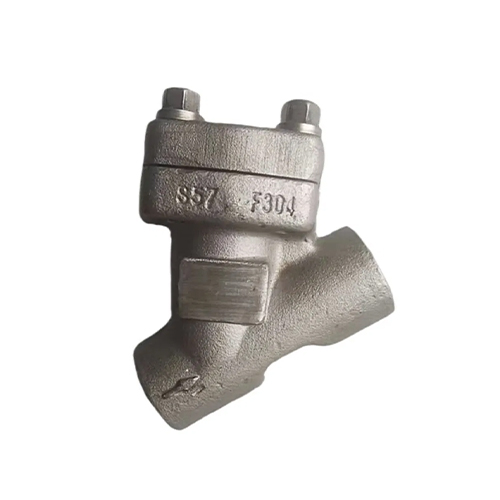

Forged Y Strainer
The SGON Forged Y Strainer has the characteristics of simple structure / small resistance and convenient discharge. The Forged Y Strainer is usually installed at the inlet of various equipment and equipment, and the forged steel Y filter is used to remove the impurities in the medium to protect the normal use of the valves and equipment. Forged steel Y filter is a bolt type valve cover designed in this design form, the valve body and the valve cover bolt connection, winding type gasket (304 plus flexible graphite) or metal ring connection seal. The general water filter uses 18-30 mesh / inch. If the user has special requirements, the filter screen can be customized.
Technical Specification
Normal Size Range: 1/2"-2" (DN15-DN50)
Normal Pressure Rating: PN16~PN420, Class150~2500LB
Material: A105,F11,F22,F304,F304L,F316,F316L
Temperature Range: -29~425 Degree C
Standards compliance
Design and Manufacture: API602
Face to face(end to end): ASME B16.10
Flanged connection: ASME B16.5
Butt welded end: ASME B16.25
Socket-Welding Ends: ASME B16.11
Screwed Ends: ASME B1.20.1
Test and inspection: API598
