Wafer Kinfe Gate Valve

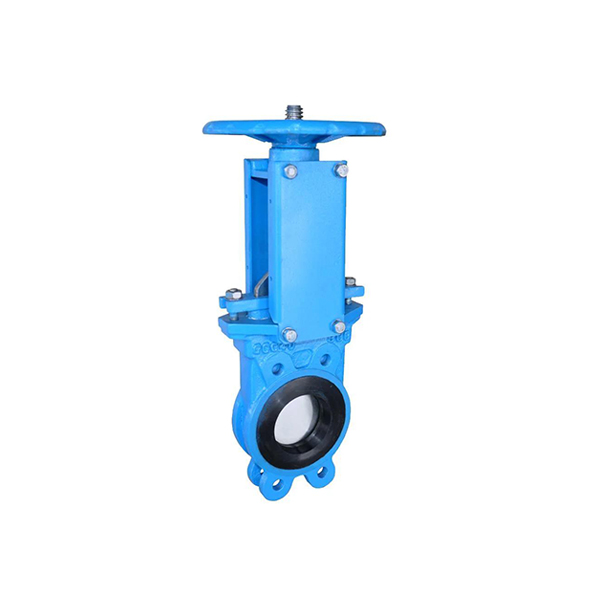

The SGON Cast Iron Wafer Knife Gate Valves are widely used in coal mine, power plant ash disposal, slag disposal, urban sewage treatment, food, health, medicine and other professional piping systems. The knife type gate valve has the advantages of simple and compact structure, reasonable design, light saving material, reliable sealing, light and flexible operation, small volume, smooth passage, small flow resistance, light weight, easy installation, easy disassembly and so on. It can work under the condition of working pressure 1.0MPa-2.5MPa and temperature -29-150 Degree C. The knife type gate valve has the shearing function, it can scrape the adhesive on the seal surface and automatically remove the sundries. The stainless steel gate can prevent the seal leakage caused by the corrosion. Valves of this type should be installed horizontally in pipes.

The SGON Knife Gate Valves, its opening and closing is the gate, the direction of the motion of the gate is perpendicular to the direction of the fluid, and the medium is cut off by cutting the blade of the fiber material. The gate has two sealing surfaces. The two sealing surfaces of the most commonly used mode gate valve form the wedge and wedge angle with the valve parameters, usually 5 degrees, and the wedge-shaped knife type gate valves. The sluice can be made into a whole, called a rigid sluice board, or a sluice which can produce a small amount of deformation to improve its craft and make up for the deviation produced by the angle of the sealing surface in the process of processing. This gate is called an elastic gate. In fact, the valve body does not exist, the gate is lifted in the side guide slot, and the lug at the bottom is pressed on the seat. If a high medium seal is needed, a O - shaped seal can be used to achieve a two-way seal. The knife gate valve has smaller installation space, low working pressure, less accumulation of debris and low price.

The SGON Knife Gate Valves are widely used in coal mine, power plant ash disposal, slag disposal, urban sewage treatment, food, health, medicine and other professional piping systems. The knife type gate valve has the advantages of simple and compact structure, reasonable design, light saving material, reliable sealing, light and flexible operation, small volume, smooth passage, small flow resistance, light weight, easy installation, easy disassembly and so on. It can work under the condition of working pressure 1.0MPa-2.5MPa and temperature -29-150 Degree C. The knife type gate valve has the shearing function, it can scrape the adhesive on the seal surface and automatically remove the sundries. The stainless steel gate can prevent the seal leakage caused by the corrosion. Valves of this type should be installed horizontally in pipes.

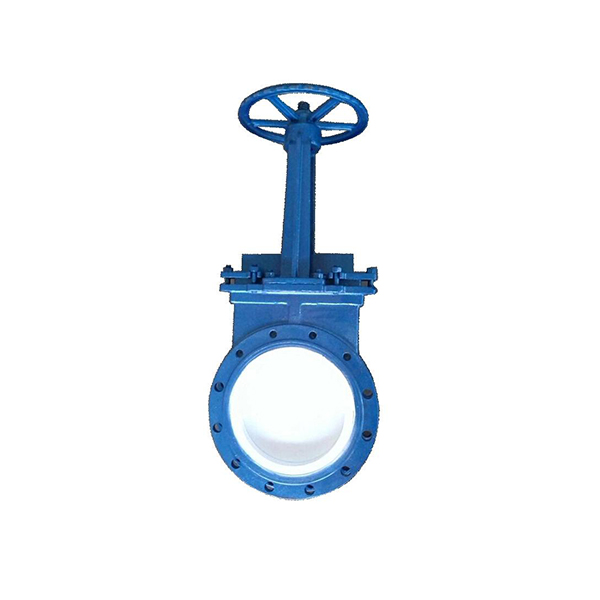

The SGON Metal Seated Flange Knife Gate Valves, its opening and closing is the gate, the direction of the motion of the gate is perpendicular to the direction of the fluid, and the medium is cut off by cutting the blade of the fiber material. The gate has two sealing surfaces. The two sealing surfaces of the most commonly used mode gate valve form the wedge and wedge angle with the valve parameters, usually 5 degrees, and the wedge-shaped knife type gate valves. The sluice can be made into a whole, called a rigid sluice board, or a sluice which can produce a small amount of deformation to improve its craft and make up for the deviation produced by the angle of the sealing surface in the process of processing. This gate is called an elastic gate. In fact, the valve body does not exist, the gate is lifted in the side guide slot, and the lug at the bottom is pressed on the seat. If a high medium seal is needed, a O - shaped seal can be used to achieve a two-way seal. The knife gate valve has smaller installation space, low working pressure, less accumulation of debris and low price.

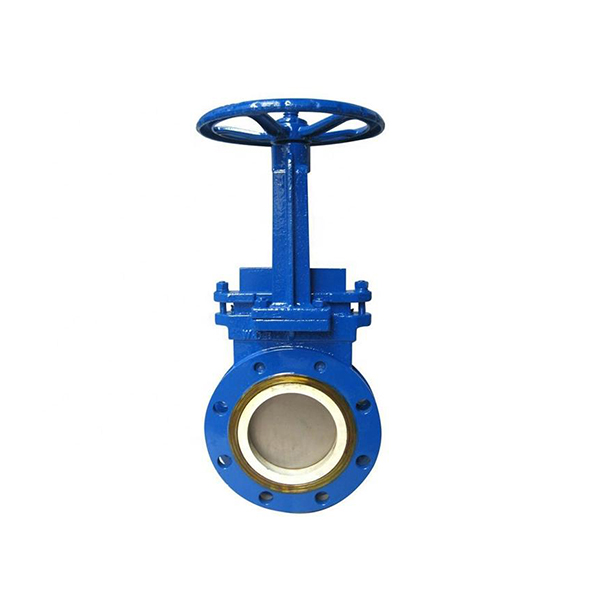

The new product elastic compensation valve seat knife gate valve specifically relates to the valve manufacturing field, including the valve body. The outlet position of the valve body is provided with a pressure sleeve, one side of the pressure sleeve is provided with a valve seat, between the valve seat and the pressure sleeve is provided with a spring, between the valve seat and the valve body is provided with an O-ring, one side of the valve seat is provided with a wedge, and between the wedge and the valve seat is provided with a ram, The top of the valve body is connected with the gate plate with a filler. The utility model is provided with a valve seat, a wedge block and a gate, and the rotating hand wheel drives the position of the gate to move down, which can squeeze the valve seat to drive the spring to shrink when the gate valve is closed. Then, under the spring resilience, the contact position between the valve seat and the gate can be automatically adjusted to achieve better sealing effect, which avoids the excessive wear of the gate when the gate valve and the valve seat move relative to each other, Keep good sealing effect continuously.

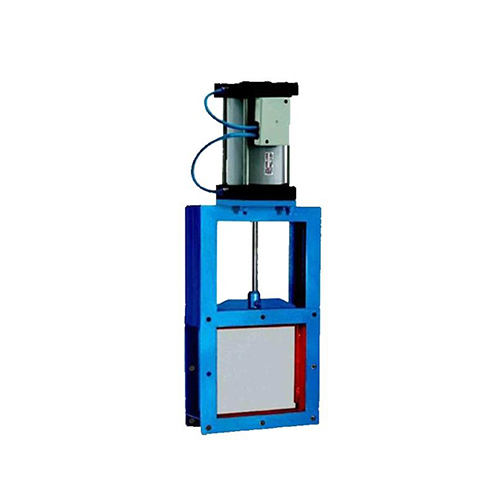

The SGON Square Gate Valves is designed with unique external arc shape, reasonable structure and uniform force, made of high quality gray cast iron or spheroidal graphite cast iron and stainless steel, copper strip or rubber in sealing surface, and after precision processing, it can reach plane contact seal and good sealing performance. When the sealing performance drops, it can pass the wedge device. The adjustment is solved.

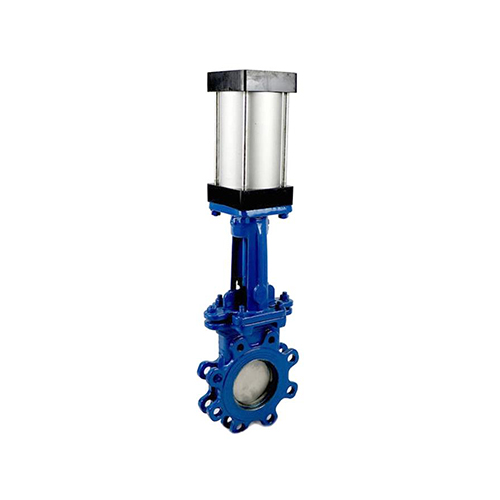

The SGON Pneumatic Knife Gate Valves is made into two forms (dark rod DN50 to 900mm, bright rod DN50 - 900mm) according to the different caliber. The full circular DC channel is designed for no slag retention and non blocking. The bottom of the knife plate is machined into a knife edge, which has the function of cutting off soft materials such as fiber, pulp and wood pulp, and has good opening and closing functions. A hard polytetrafluoroethylene scraper is installed on the upper end of the knife plate, which prevents dust, sand and other scraping substances from entering the packing box, and significantly improves the service life of the cutter plate. Valve plate material selection stainless steel, fine grinding polishing treatment can get the best sealing effect. Compact design, small space, light weight, cheap price, easy to install, wear-resistant and anti blocking measures are perfect, easy to repair, easy to use and long life, and can choose the driving device arbitrarily.

The opening and closing part of the knife gate valve is the ram, and the movement direction of the gate is perpendicular to the direction of the fluid. The knife gate valve can only be fully opened and closed, and can not be adjusted and throttled. The gate has two sealing surfaces. The two sealing surfaces of the most commonly used mode gate valves form wedges and wedge angles that vary with the parameters of the valve, usually 50. The sluice of the wedge type knife gate valve can be made into a whole, called a rigid gate, and a sluice which can produce a trace deformation to improve its craft and make up the angle of the seal face. Deviations produced in the process of work.

The Ceramic Knife Gate Valve is used in excessive wear pipeline for open-close purpose. The valve is compact in design, easy to install. Seal seat of the valve adopts (ZTA) ceramic composite sealing form and its hardness (HRC 90 ) has good toughness , solving the problem of hard and brittle ceramics, effectively ensuring the high wear-resistance and corrosion-resistance. The valve plate is made of high chromium alloy with high wear-resistance, impact -resistance, and it can be used for throttling. Besides, the valve is featured with light and easy opening and little friction, ash deposition and ash clogging will not occurred in valve chamber.
